KDMT Ball Nose Platform • KDMS • KDMT

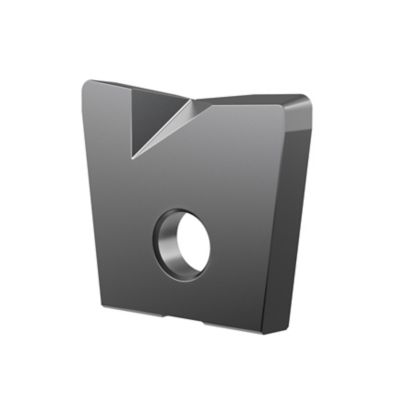

The KDMT indexable toroidal copy milling system is a proven solution for roughing and finishing operations. Engineered with a wide range of diameters and insert styles, this platform provides exceptional performance and productivity--especially during flat-bottom and back-draft finishing. The high feed insert style provides high removal rates and precision accuracy. The KDMT copy milling system can be used on a variety of workpiece materials ranging from hardened steel to aluminum. The wide diameter range enables the system to be applied across several types of machining conditions. Toolholders are available with screw-on and cylindrical shanks. KDMS precision inserts are also available.
Filters
Filters
View filters in
MetricInch
Workpiece Material
- Steel (69)
- Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS(21)
- Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS(69)
- Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS(69)
- Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS(69)
- Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS(69)
- Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS(69)
- High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS(69)
- Stainless Steel (69)
- Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS(69)
- High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS(69)
- Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS(69)
- Cast Iron (69)
- Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS(69)
- Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS(69)
- High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS(69)
- Non-Ferrous Materials (31)
- Wrought Aluminum (31)
- Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%(31)
- High-Silicon Aluminum Alloys Si >12.2%(31)
- High-Temp Alloys (34)
- Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS(17)
- Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS(17)
- Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS(31)
- Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS(21)
- Hardened Materials (60)
- Hardened Materials 44-48 HRC(47)
- Hardened Materials 48-55 HRC(58)
- Hardened Materials 56-60 HRC(58)
